Product Description

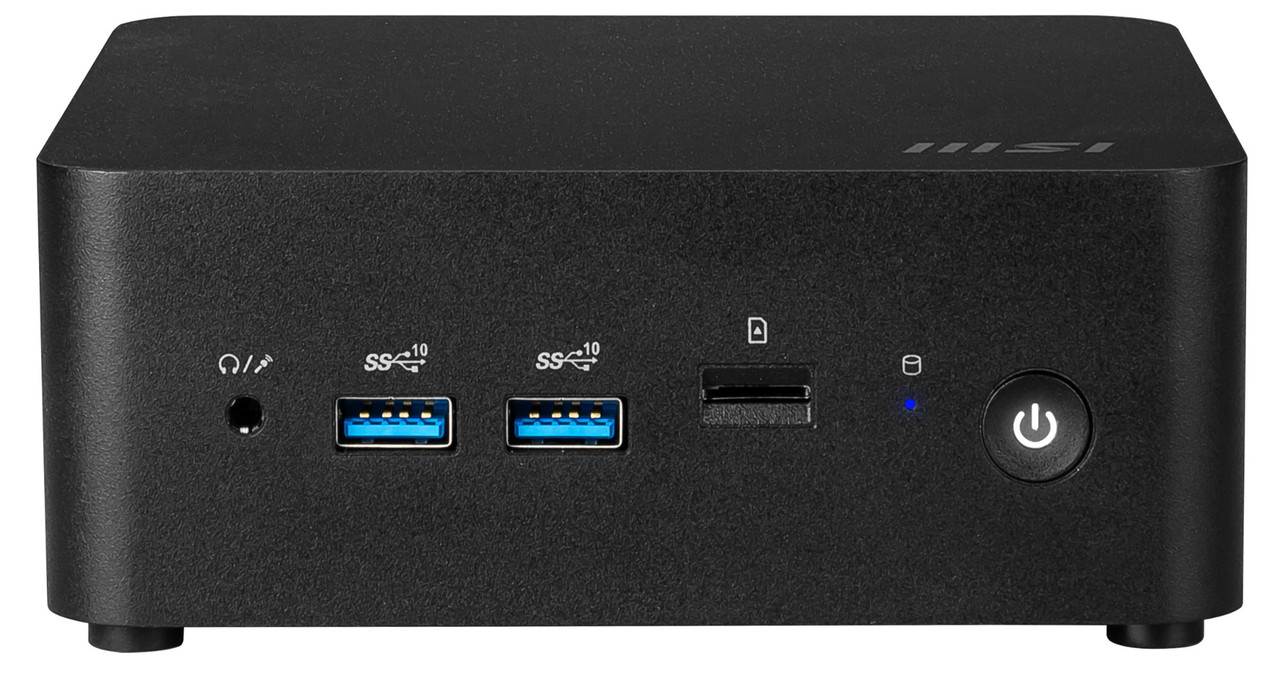

MSI Cubi NUC 1M-010US Intel Core 3 100U 8 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Mini PC Black
| Processor | |
|---|---|
| Processor generation | Intel Core (Series 1) |
| Processor cache type | Smart Cache |
| Processor cache | 10 MB |
| Processor model | 100U |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 8 |
| Processor cores | 6 |
| Processor family | Intel Core 3 |
| Number of processors supported | 1 |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD capacity | 500 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 500 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 500 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 1.4b/2.1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI port | No |
| DisplayPorts quantity | 0 |
| DC-in jack | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Motherboard form factor | NUC |
| Cooling type | Active |
| Cable lock slot | Yes |
| Motherboard chipset | Intel SoC |
| Design | |
| VESA mounting | Yes |
| Housing material | Plastic |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Performance | |
| Number of displays supported | 4 |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | NUC |
| Built-in speaker(s) | No |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Weight & dimensions | |
| Package width | 8.07" (205 mm) |
| Package depth | 8.66" (220 mm) |
| Package height | 3.7" (94 mm) |
| Width | 5.22" (132.5 mm) |
| Depth | 5.34" (135.6 mm) |
| Height | 1.97" (50.1 mm) |
| Package weight | 3.04 lbs (1.38 kg) |
| Weight | 22.2 oz (630 g) |
| Packaging data | |
| Package width | 8.07" (205 mm) |
| Package depth | 8.66" (220 mm) |
| Package height | 3.7" (94 mm) |
| Package weight | 3.04 lbs (1.38 kg) |
| Packaging content | |
| AC adapter included | Yes |
| Mouse included | No |
| Display included | No |
| Keyboard included | No |
| Display | |
| Display included | No |
| Other features | |
| VESA mounting | Yes |
| Number of displays supported | 4 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Power supply type | External AC adapter |
| Processor manufacturer | Intel |
| Cooling type | Active |
| Panel mounting interface | 100 x 100 mm |
| Built-in speaker(s) | No |
| Number of M.2 (M) slots | 2 |
