Product Description

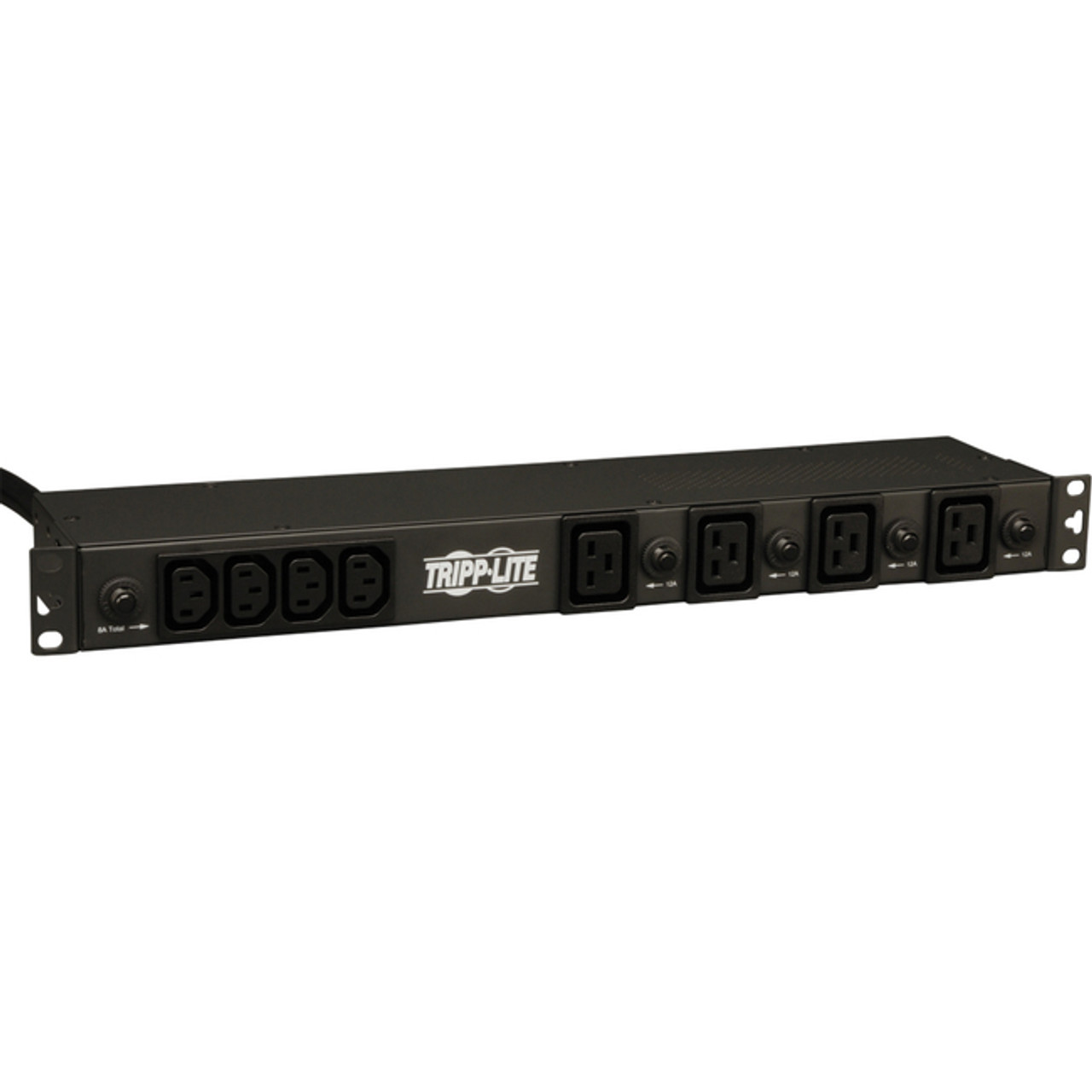

Tripp Lite PDU Basic 208V / 240V 30A 20 Outlet 15 ft Cord - PDU1230
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU1230
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDU1230
Product Name: PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Marketing Information:
Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L6-30P
Output Receptacles: 20
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage:
- 208 V AC
- 240 V AC
Power Rating (VA): 4990 VA
Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Rack Height: 1U
Height: 1.8"
Width: 17.5"
Depth: 5.2"
Weight (Approximate): 7.50 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Videos
Custom Field
Product Reviews
